Front Access P2.97 Indoor Rental Led Display Panel Wide Viewing Angle
Front access P2.97 Indoor Rental Led Display Panel With 50x50cm Panel
1. Rental Die-Casting Aluminum structure
2. Lightweight
3. Seamless Splicing
4. Excellent thermal management
5. Quick lock system, easy installation
6. Wide viewing angle
7. Working status indicator
8. The pitch 8mm led rental display with High-performance aluminum alloy frame with the weight only
10kg, which can save transportation cost and reduce labor intensity effectively.
9. Using quick rim lock to connect left-right and up-down cabinets, needs only 10s to install one cabinet,
very quick and easy for installing
10. Nanotechnology applied in the module, the protection rate can reach IP65.
11. Using the design of removable dowel pin, so a single cabinet can be taken out from the whole screen to have a repairment.
P2.97 Indoor Rental Led display Specs
| |
BIR-II-2 |
| Physical Pitch(mm) |
2.97mm |
| Pixel Configuration |
SMD2121 |
| Pixel Density |
112,896 pixels/sqm |
| Module Dimensions (W × H) (mm) |
250x250 |
| Panel Dimensions (mm) |
500x500x80/500x1000x80 |
| No. of Modules Per Panel (W × H) |
2x2/2x4 |
| Physical Resolution of Module (W x H) |
84x84 |
| Physical Resolution of Panel (W x H) |
168x168/168x336 |
| Panel Material |
Die-casting Aluminum |
| Single Cabinet Weight |
8/14 kg / panel |
| Gray Scale |
16 bit |
| Colours |
281 trillion |
| Contrast Ratio |
4,000:1 |
| Average Power Consumption |
400 W / ㎡ |
| Max Power Consumption |
800 W / ㎡ |
| Operating Temp/Humidity |
-10°-60℃/10%-60% |
| Storage Temp/Humidity |
-30°-60℃/10%-60% |
| Refresh Rate |
>1,920 Hz |
| Brightness |
≥1,200nits |
| Horizontal Viewing Angle |
160° |
| Vertical Viewing Angle |
140° |
| Expected Lifetime |
100,000 Hrs |
P2.97 Indoor Rental Led display Features:

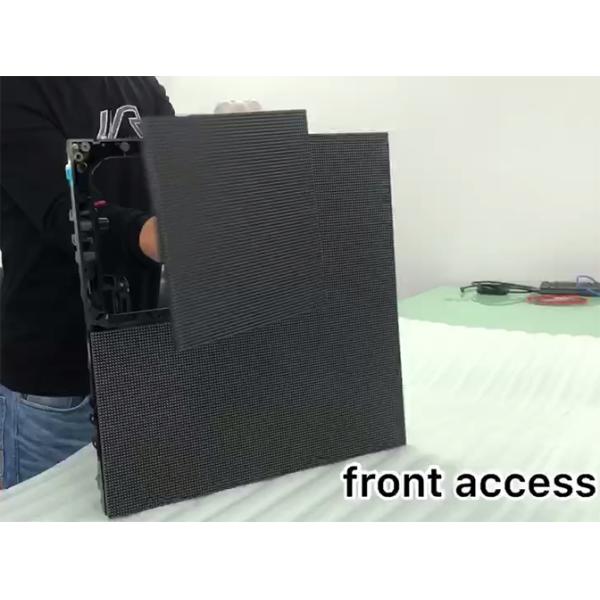

1. Front access module makes easy maintenance service;
2. Detachabel power box design;

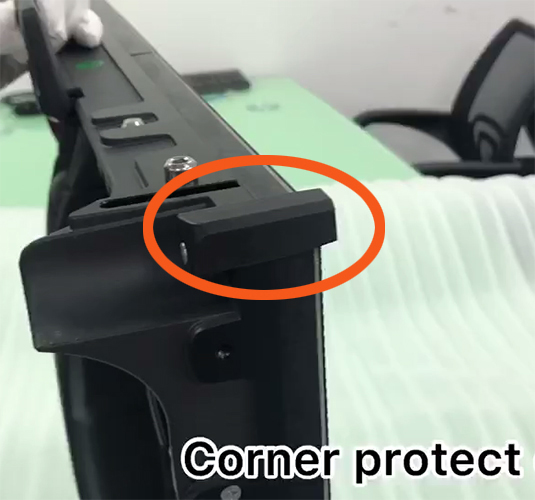

3. Corner protecor protects leds in all corners;
